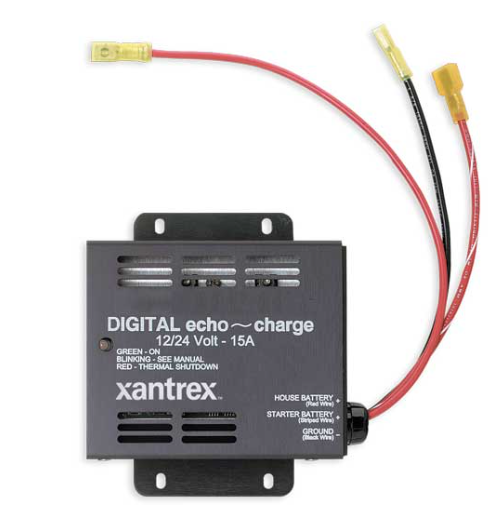

Xantrex Digital Echo Charge • 82-0123-01

Product Details

The Xantrex Digital echo-charge is specially developed for charging an auxiliary battery with Xantrex Freedom or Fleet Power Inverter/Chargers or with any charging source. The Digital Echo-Charge automatically switches ON and OFF, charging a starter or auxiliary battery without affecting the main house battery bank. The maximum charge current is 15 amps when the starting battery is 0.5 to 1 volt DC less than the house battery. The Xantrex Digital Echo-Charge is designed to work on 12 VDC or 24 VDC systems. The Digital Echo-Charge is a voltage-follower, following the three-stage charge modes of the Freedom Charger. This method protects the starter battery from over-charging and ensures a long life for the battery. If using another charge source, the Digital Echo-Charge will follow the charge stages of the source.

  • 15 A maximum charge current
  • Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)
  • Automatically switches on/off without affecting the in-house battery bank or over-charging
  • Utilizes excess current from the primary charging source
  • Built-in thermal and over-current circuits
  • Reverse polarity protection
  • Easy three wire installation
  • Limited 1 Year Warranty

Specs:

  • Number Of Banks: 2
  • Application: 12 Volt And 24 Volt Batteries
  • Output Voltage: 12 Volt/ 24 Volt
  • Input Voltage: 120 Volt
  • Ampere Rating: 15 Amp Charging
  • Number Of Stages: 3 Stage
  • Length (IN): 1-1/4 Inch
  • Width (IN): 4-1/2 Inch
  • Height (IN): 5-1/2 Inch

$172.99

102 in stock
