WiFi Antenna; Wi-Fi Booster, Long Range System For Large Vessels, Dual Band 2.4/5 GHz, 5 G Faster AC Interface, MIMO For Faster Speeds, Includes 2 External Dual Band Antennnas, 2 Internal Antennas, 25′ LMR Cables, 12 VDC Input, Integrated Software.

Frequency: 2.4 To 5 GHz
Input Voltage: 12 Volt

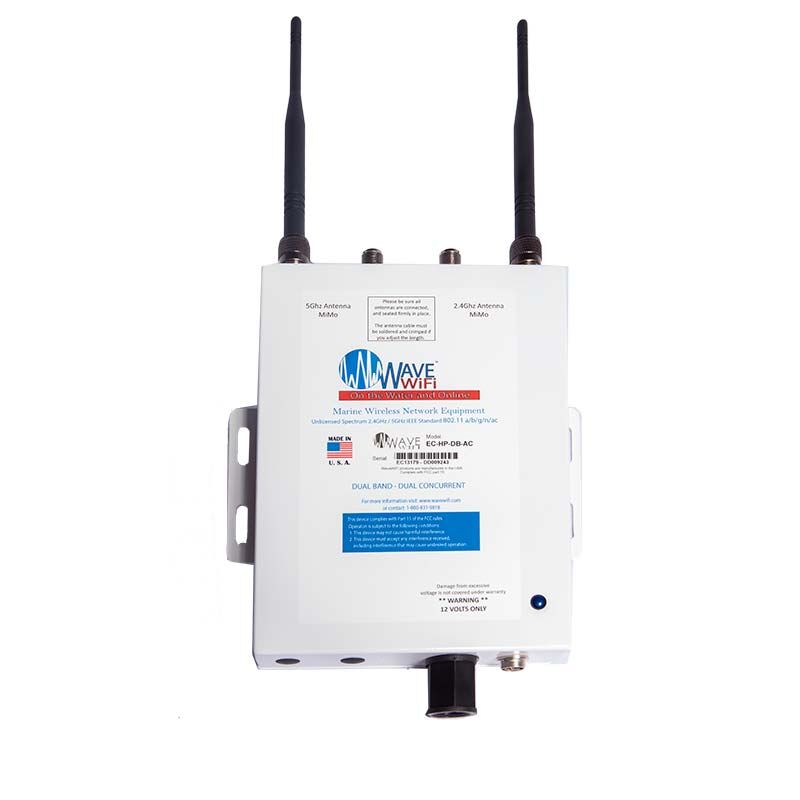

Wave WiFi EC-HP DB ACWiFi Extender — Dual 2.4 and 5 GHz BandTwin External Antenna Design for Large Size VesselsWith support for 5GHz 802.11 a/cWave WiFi’s EC HP DB uses a 600Mhz processor and provides long-range connections to good quality hotspots. The EC HP DB supports MiMo data transmission, with the ability to use multiple antennas at the same time to send and receive data packets faster and more reliably.The EC HP DB also supports WEP, WPA and WPA2 encryption. The system is also an ethernet converter (EC Unit), so a direct connection can be made to any WAN ethernet enabled device, router or switch, resulting in flawless performance as a standalone system or integrated into the vessel’s network. The system comes with a Web-based user friendly interface. There is no software to install.Wave WiFi products offer outstanding performance because of the proprietary firmware technology embedded in each unit. The Web-based firmware permits the user to scan for access points (Hotspots) and provides a detailed diagnostic of the quality of each hotspot. The Graphical User Interface allows the user to see the signal strength and quality in real time of any connected hotspot.

Output Power – 1000 Mw
Includes Optional Support For 5 GHz 802.11 A/C
Weather Proof Enclosure
User Friendly Proprietary Web-Based Wave WiFi Interface
Two “Rubber Duck” Internal Antennas, Two 48″ Omni-Directional External Antennas
Two 25′ LMR 400 Antenna Cables, N-Male Connectors
Ethernet Port And 25′ Cable (To Any Ethernet Enabled Device)
DC Power, 12 Volts Cable Included
Instructional CD Disk, Quick Start Guide
Limited 2 Year Warranty
