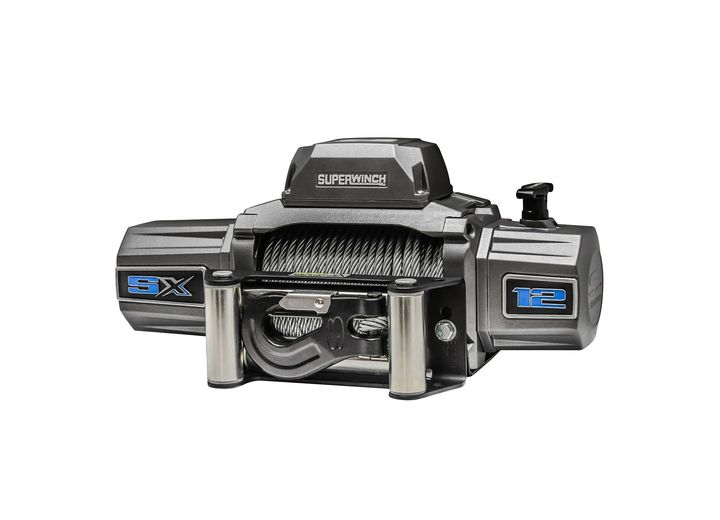

Superwinch SX12 12V DC 12,000lb Wire Rope Winch • 1712200

Product Details

The SX12 winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter wire rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12000 wire rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.


  • 12V DC 12,000 lbs rated line pull
  • 6.0 HP sealed motor

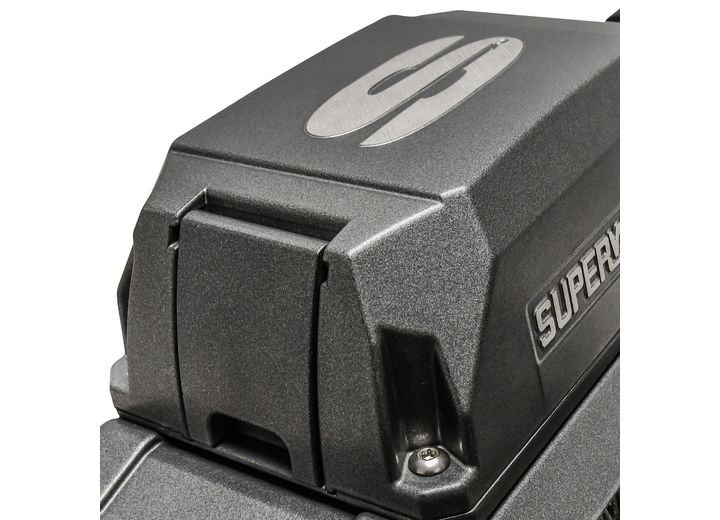

  • Relocatable die-cast aluminum control box
  • 12′ handheld wired remote features flashight with rechargeable lithium ION battery

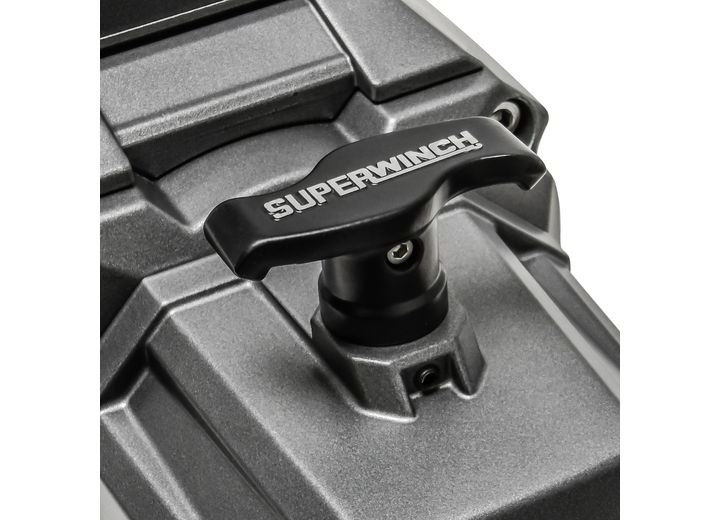

  • Pull-and turn clutch handle
  • 3-stage planetary gearing with 231:1 ratio
  • Patented drumlight

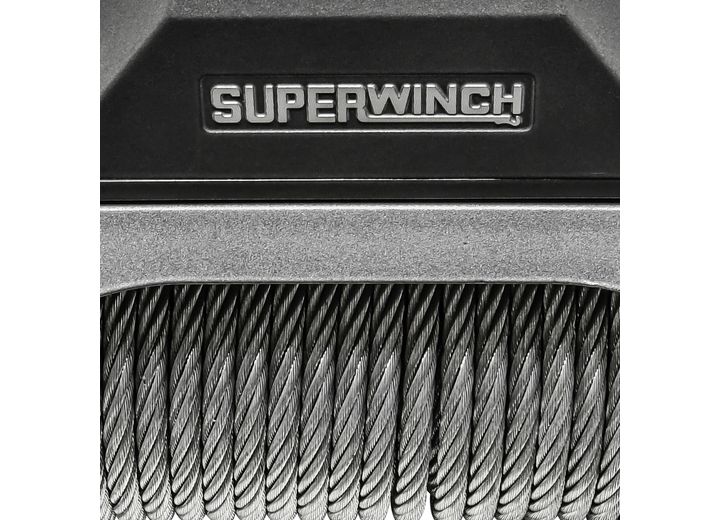

  • Wire rope measures 3/8” x 85′
  • Drum diameter measures 2.5″

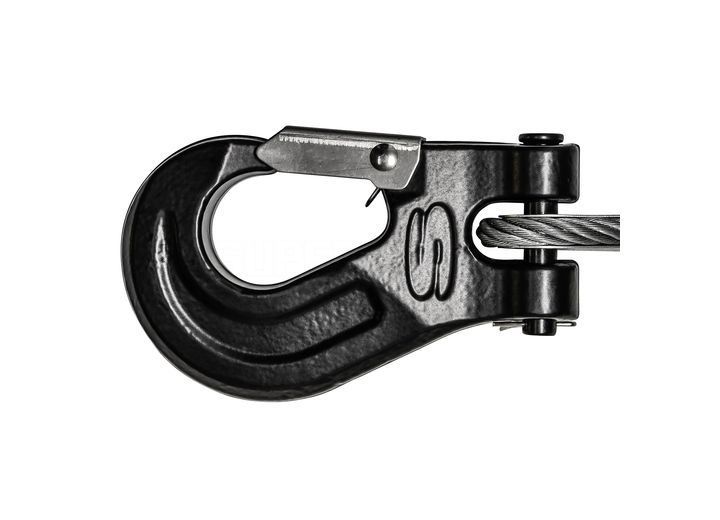

  • Heavy duty clevis winch hook
  • Stainless steel 4-way roller fairlead
  • 100% full load holding automatic mechanical brake

  • Brake: Automatic, 100% Load Holding Mechanical
  • ClutchPull and Turn, Ergonomic Free Spooling
  • Dimensions22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
  • Drum Diameter2.5in (64mm)
  • Drum Length8.75in (223mm)
  • FairleadHeavy Duty Stainless Steel 4-way Roller
  • Gear Ratio231:1
  • Gearing3-Stage Planetary
  • HookHeavy-Duty, Clevis Pinned Latched
  • Line Pull, 0 lbs: 68 Amps Motor Draw/23.4 FPM (7.13 MPM) Line Speed
  • Line Pull, 10,000 lbs: 379 Amps Motor Draw/3.7 FPM (1.13 MPM) Line Speed
  • MotorSealed 6.0 HP Series Wound
  • Mounting Bolt Pattern10in x 4.5in (254mm x 114.3mm)
  • Rated Line Pull12,000 lbs (5443.1 kg)
  • RemoteSealed Ergonomic Hand-held with 12ft Coiled Cord
  • RopeSteel Wire 3/8in x 85ft (9.5mm x 25.9m)
  • SolenoidSealed Solenoid, relocatable
  • WarrantyLimited Lifetime Mechanical, 7 Year Limited Electrical

$673.99

37 in stock
