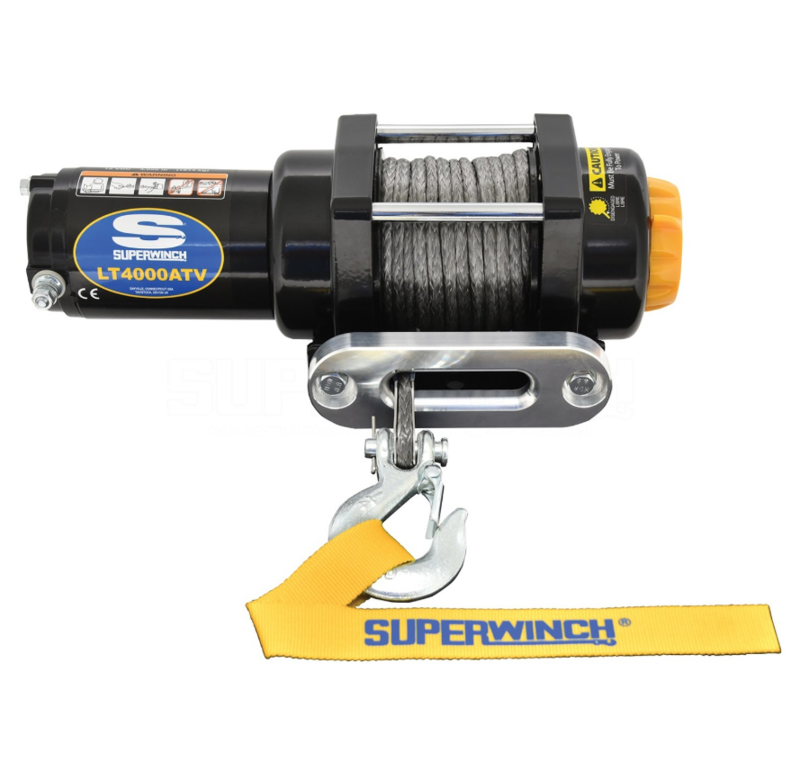

Superwinch LT4000SR 12V Synthetic Rope Winch • 1140230

Product Details

Built for action, the Superwinch LT4000SR Winch provides up to 4,000 lbs of reliable pulling power. The LT4000SR is a great choice for a quality, well-built winch that delivers a powerful performance, season after season. The Superwinch LT Series features tried-and-true designs perfected over the years to offer unmatched durability and performance.

  • 12V DC 4,000 lbs rated line pull
  • Sealed 1.4 HP permanent magnet motor
  • 3-Stage planetary gearing with 166:1 ratio
  • Sealed solenoid, circuit breaker protected
  • Free-spooling, ergonomic control clutch
  • 3/16 in x 50 ft synthetic rope
  • Heavy-duty, clevis pinned, latched hook
  • Aluminum hawse fairlead
  • 12 ft hand-held remote with handlebar mounted rocker switch

Specs:

Brake: Automatic, 100% Load Holding
ClutchFree-Spooling, Ergonomic Control
Drum Diameter2.0in (50.2mm)
Drum Length2.9in (74mm)
FairleadAluminum Machined Hawse
Gear Ratio166:1
Gearing3-Stage Planetary
HookHeavy-Duty, Clevis Pinned Latched
Installed Weight25 lbs (11.34 kg)
Line Pull, 0 lbs20 Amps Motor Draw/18 FPM (5.4 MPM) Line Speed
Line Pull, 4,000 lbs210 Amps Motor Draw/4.5 FPM (1.3MPM) Line Speed
MotorSealed 1.4 HP
Mounting Bolt Pattern3.0in x 4.87in (76mm x 124mm)
Rated Line Pull4,000 lbs (1814.3 kg)
RemoteHandheld with 12ft cord plus Handle Bar Rocker Switch
RopeSynthetic 3/16in x 50ft (4.8mm x 15.0m)
SolenoidSealed Solenoid, Circuit Breaker Protected
Warranty1 Year Limited

$401.99

6 in stock
