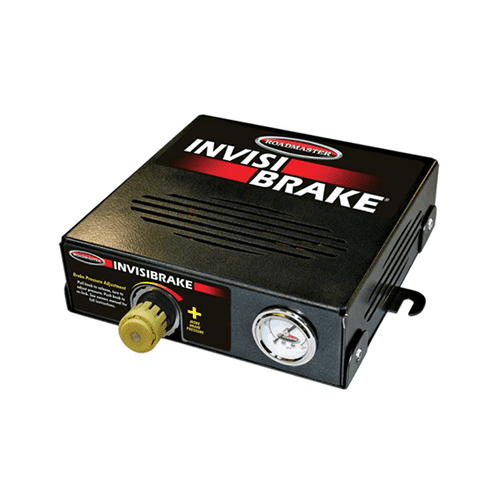

The Roadmaster InvisiBrake Supplemental Braking System • 8700 is a cutting-edge solution designed to enhance the safety and performance of your towing experience. With a compact controller size of 8-3/4” x 8-3/4” x 2-3/4”, this system operates seamlessly with a voltage of 12 Volts DC and a fuse size of 20 Amp, ensuring efficient performance in a wide range of conditions.

Key Specs:
– Operating Temperature Range: -2° to +150° F (-19° to +66° C)
– Maximum Amperage Draw: 10.8 Amps
– Idle Amperage Draw: 6mA
– Battery Recharging Rate: Up to 2 Amps
– Approximate Maximum Air Pressure: 100 PSI

Crafted with precision and durability in mind, the InvisiBrake features an ISO-Certified Circuit Board, a robust stainless steel & brass control valve, and an all-brass high-volume air compressor. The powder-coated all-metal base & cover provide long-lasting protection and a sleek aesthetic appeal.

Key Features:
– Set-It-and-Forget-It Braking for peace of mind on the road
– Can Be Mounted Out of Sight for a clean and streamlined look
– Charges Your Battery While Towing for added convenience
– Two-Stage Motorhome Monitor for easy monitoring
– Activates Only When the Motorhome’s Brake Lights Illuminate to enhance safety
– Energizes your Power Brakes for efficient performance
– Works in Virtually Any Towed Vehicle with Vacuum-Powered Brakes for versatility
– Includes an Emergency Break Away System for added safety measures
– Easily Adjusts to Individual Braking Preferences for personalized control
– Braking Pressure is Adjustable from 5 to 100 PSI to suit different towing needs
– Meets U.S. & Canadian Braking Requirements for compliance and peace of mind
– Proudly Made in the U.S.A. for superior quality and craftsmanship

Enhance your towing setup with the Roadmaster InvisiBrake Supplemental Braking System • 8700, a reliable and innovative solution that prioritizes safety, performance, and convenience on the road.
