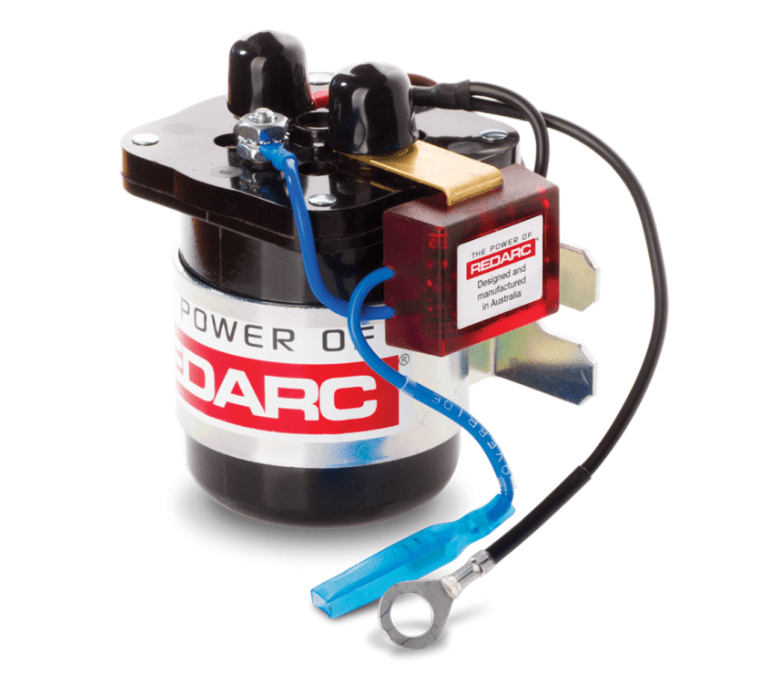

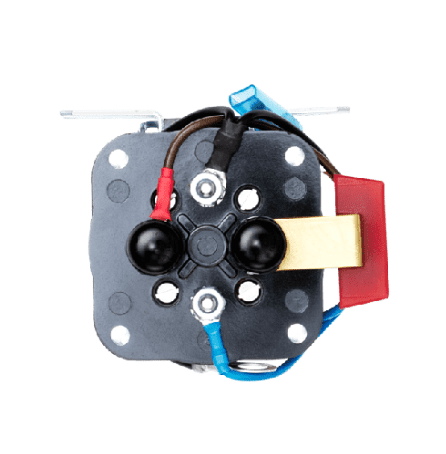

Redarc Smart Start SBI 12V 200A • SBI212

Product Details

The REDARC Smart Start® SBI212 is a battery isolator used as a solenoid priority system to protect the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. It provides 12-volt DC with the incorporation of 200A of continuous ratings. The SBI212 is designed for extremely heavy-duty operations. It’s primarily used in commercial vehicle dual battery systems. It incorporates electronic components to prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. Its low standby current draw and sophisticated fault detection and LED indication of operation warns the user of faults including over-voltage, voltage drop, and excessive current draw conditions. The Smart Start SBI battery isolator is a safe way to top-up your secondary battery in your dual battery system with its power saving technology for the ultimate performance. 2 Year Warranty.


  • Overmold design
  • Compact size and easy installation
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected

MAX. INRUSH CURRENT: 600A
MAX. CONTINOUS CURRENT: 200A
TURN ON VOLTAGE: 13.2V
TURN OFF VOLTAGE: 12.7V
TURN ON DELAY: 5 seconds
TURN OFF DELAY: 10 seconds
STANDBY CURRENT: <5mA
WEIGHT: 1.3 lb (600 g)
HEIGHT: 3.54″ (90 mm)
WIDTH: 3.74″ (95 mm)
DEPTH | LENGTH: 3.94″ (100 mm)
SYSTEM VOLTAGE: 12V
OUTPUT VOLTAGE: 12V DC
INPUT FUSE RATING: 200A
OUTPUT FUSE RATING: 200A

$280.99

4 in stock
