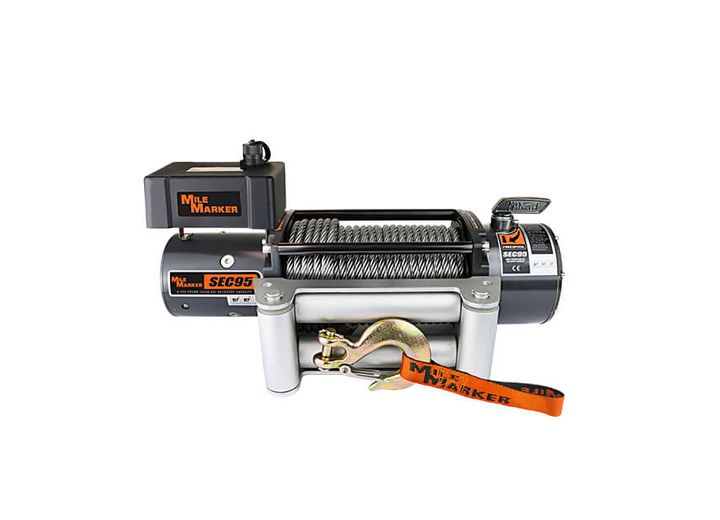

Mile Marker SEC95 9500 LB Winch, Steel Cable • 76-50246BW

Product Details

The Mile Marker SEC95 premium Jeep/Truck/SUV winch with a rugged 9,500 pound pull strength stands up to most any off-road environment. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch. With robust controls, fully sealed 500-amp (Synthetic Rope Version) & 400-amp (Steel Cable Version) solenoids and body, and an integrated kill switch, the SEC95 is an industry proven winch at an unmatched value. Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC95 comes with a 3/8” x 100’ steel cable with a roller fairlead or a 3/8” x 92’ synthetic rope an anodized aluminum hawse, stainless steel hardware, corrosive-resistant, a hook, and a handheld remote control with a 12′ cord.


  • 4.9 HP Series Wound Motor
  • Rugged Planetary Gear Sets
  • Clockable Gear Housing
  • Fast Line Speeds
  • Submersible, 400 Amp Solenoid
  • Automatic Load Holding Brake
  • Corrosion Resistant Stainless Steel Fasteners
  • 100′ Steel Cable
  • Aluminum Hawse Fairlead or Roller Fairlead
  • Waterproof
  • Handheld Remote control
  • 2 Year Limited Warranty

Specs:

  • Rated line pull 9500 lbs (4309 Kgs)
  • Gear Train 3 Stage Planetary
  • Gear Ratio 210:1
  • Motor Series Wound, 4.9 hp (3.6 kw), 12V (24V available, call to order)
  • Remote Control Power In, Power Out Remote, 12’
  • Dimensions (LxWxH) 22.25” X 6.25” X 8.00” (565.2 mm X 158.8 mm X 203.2 mm)
  • Steel Cable 3/8” X 100’ (nominal 14,400 lbs, 6531 kg) (9.53 mm X 30.5 m)
  • Drum Size 2.5” X 9” (63.5 mm X 228.6 mm)
  • Net weight 92 lbs (42 Kg)
  • Bolt Pattern 4 Bolt Pattern, 4.5” X 10”, (114.3 mm X 254 mm)

$692.99

9 in stock
