Demco Air Force One Braking System • 9599007

Product Details

The Demco Air Force One Braking System • 9599007 energizes the towed vehicle’s power brakes through a patented process that does not require an electronic vacuum pump. It offers the following features and benefits:

– No moving parts to wear out
– Delivers 100% direct proportional braking using a pilot signal from the coach’s air brake system
– Provides perfect braking symmetry for the towed vehicle
– Consists of three main components: the Operating Unit, the Actuator, and the Coach Air Assembly

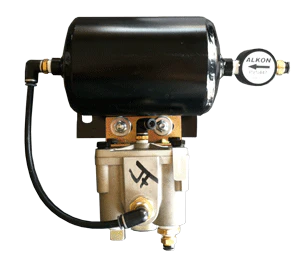

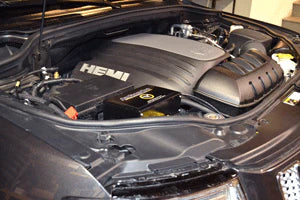

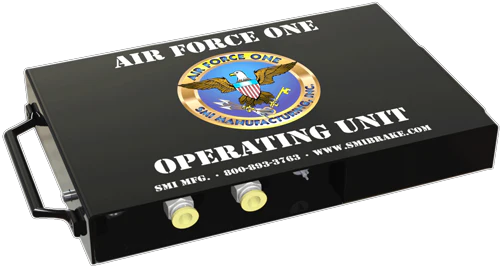

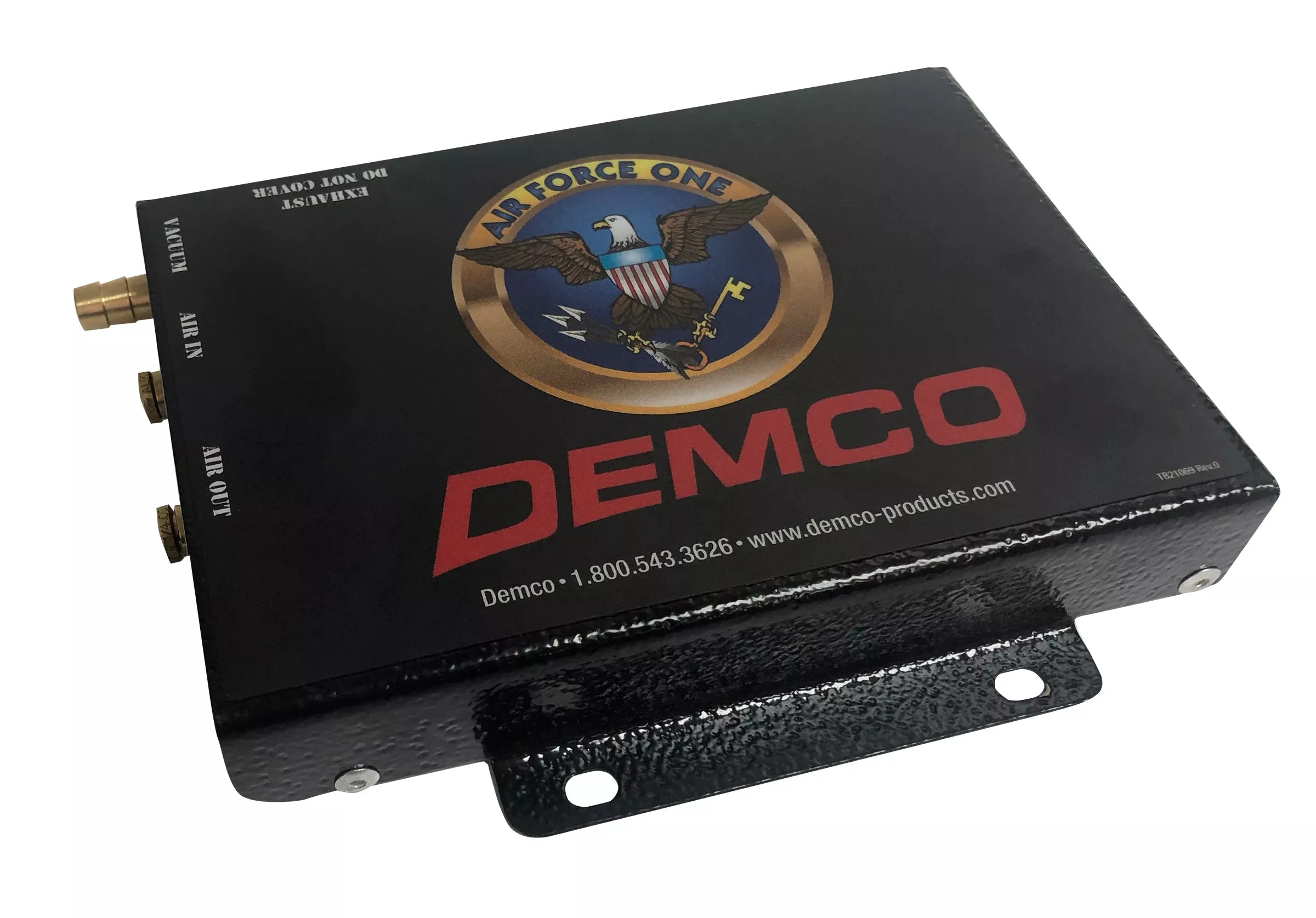

– The Operating Unit mounts under the hood of the towed vehicle, out of sight, and houses the vacuum generator and reserve air supply

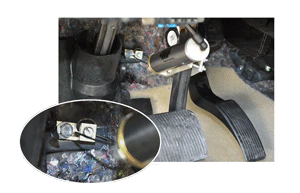

– Brake actuator is compact, mounts on the brake arm, and secures to the firewall with one screw
– Proprietary design prevents binding and cable hang-ups
– Invisible and always ready for towing with no set up or take down
– Offers Total Coach Protection with a patented breakaway system
– Coach Air Assembly is pre-assembled and pre-tested with compact size and flexible mounting options
– Compatible with all makes and models, small to large, including hybrids
– Complete installation kit included

Specifications:
– Operating Unit dimensions: Compact under-the-hood mounting
– Actuator design: Linear force with no pulleys
– Coach Air Assembly size: Approximately 12” x 10” x 6”
– Mounting options for Coach Air Assembly: Easy with two 3/8” bolts
– Fittings: Push-to-connect style DOT rated
– Compatibility: All towed vehicle makes and models
– Additional details: Meets federal regulations (FMVSS 121) and chassis warranty requirements for air brakes

    $1,349.99

    100 in stock
