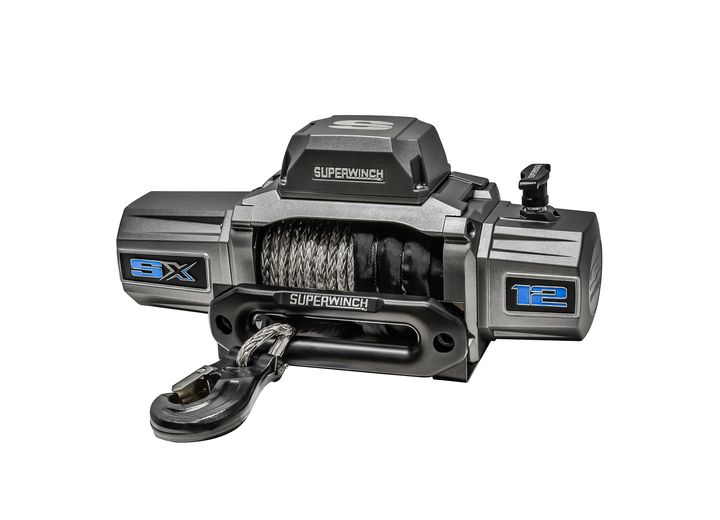

The SX12SR winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter synthetic rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today’s modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.

– 12V DC 12,000 lbs rated line pull
– 6.0 HP sealed motor

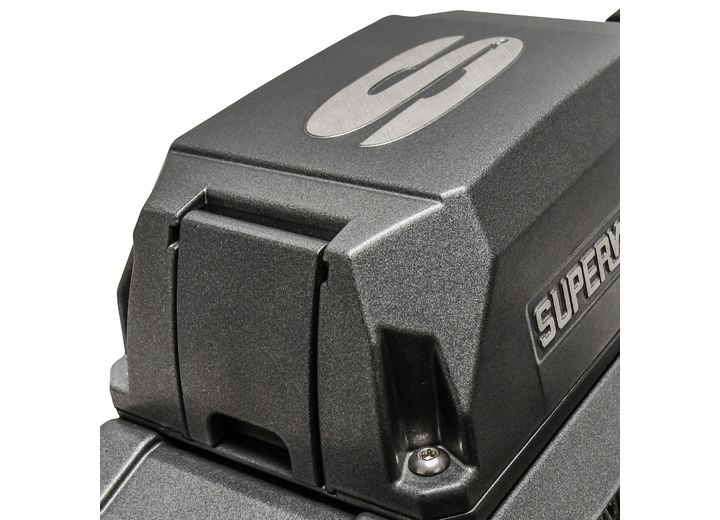

– Relocatable die-cast aluminum control box

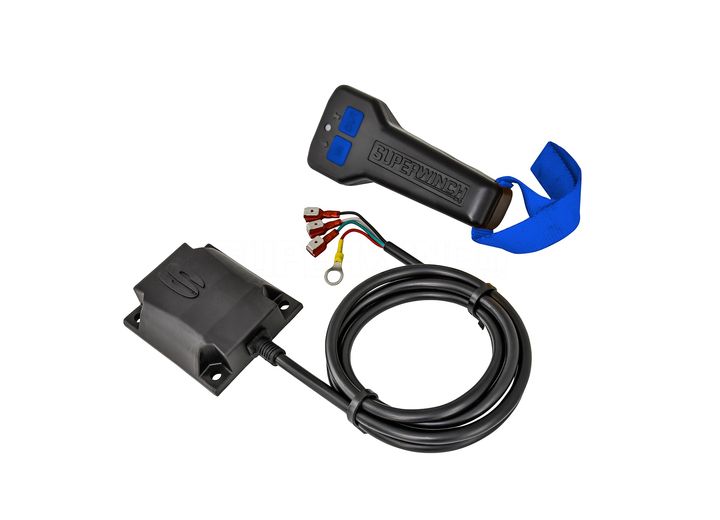

– Includes wireless handheld remote & 12′ lighted wired remote

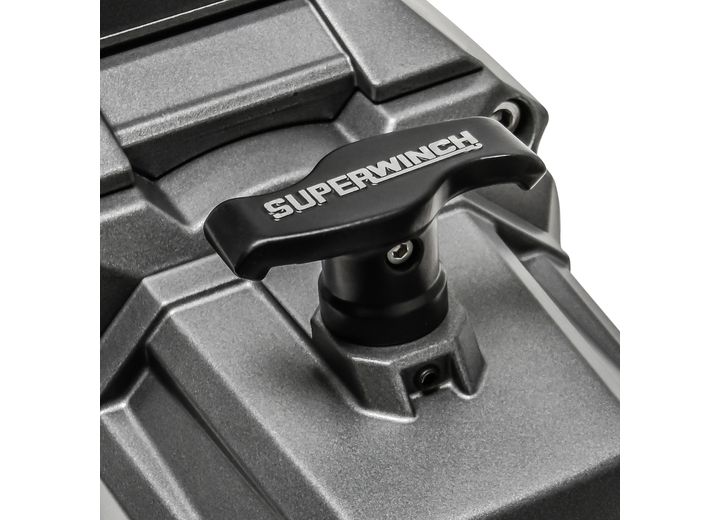

– Pull-and-turn clutch handle
– 3-stage planetary gearing with 231:1 ratio
– Patented drum light

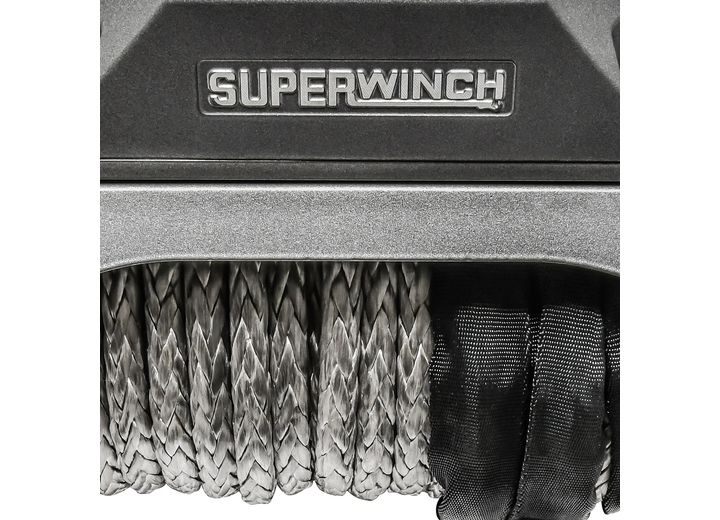

– Synthetic rope measures 3/8” x 80′
– Drum diameter measures 2.5″

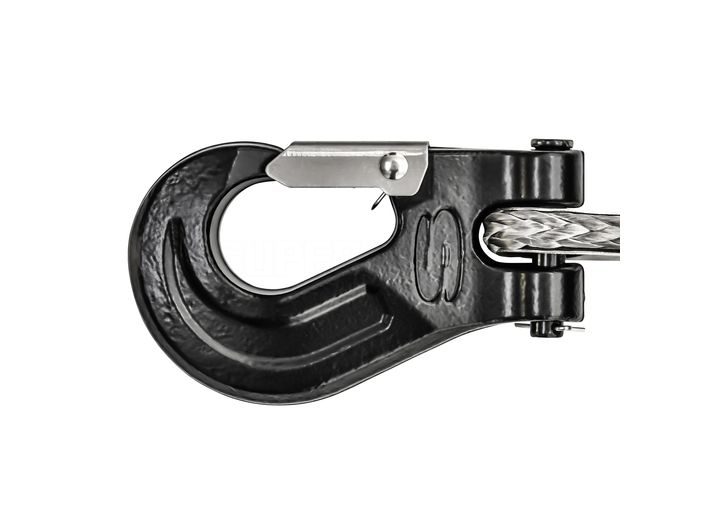

– Heavy duty clevis winch hook
– Aluminum hawse fairlead
– 100% full load holding automatic mechanical brake
– Brake: Automatic, 100% Load Holding Mechanical
– Clutch: Pull and Turn, Ergonomic Free Spooling
– Dimensions: 22.04in L x 6.3in W x 9.67in H
– Drum Diameter: 2.5in
– Drum Length: 8.75in
– Fairlead: Aluminum Machined Hawse
– Gear Ratio: 231:1
– Gearing: 3-Stage Planetary
– Hook: Heavy-Duty, Clevis Pinned Latched
– Line Pull, 0 lbs: 68 Amps Motor Draw/23.4 FPM Line Speed
– Line Pull, 10,000 lbs: 379 Amps Motor Draw/3.7 FPM Line Speed
– Motor: Sealed 6.0 HP Series Wound
– Mounting Bolt Pattern: 10in x 4.5in
– Rated Line Pull: 12,000 lbs
– Remote: Wireless Handheld and Sealed wired handheld with 12ft cord
– Rope: Synthetic 3/8in x 80ft
– Solenoid: Sealed Solenoid, relocatable
– Warranty: Limited Lifetime Mechanical, 7 Year Limited Electrical
